S2PR-P3BABL Autonics Push Button

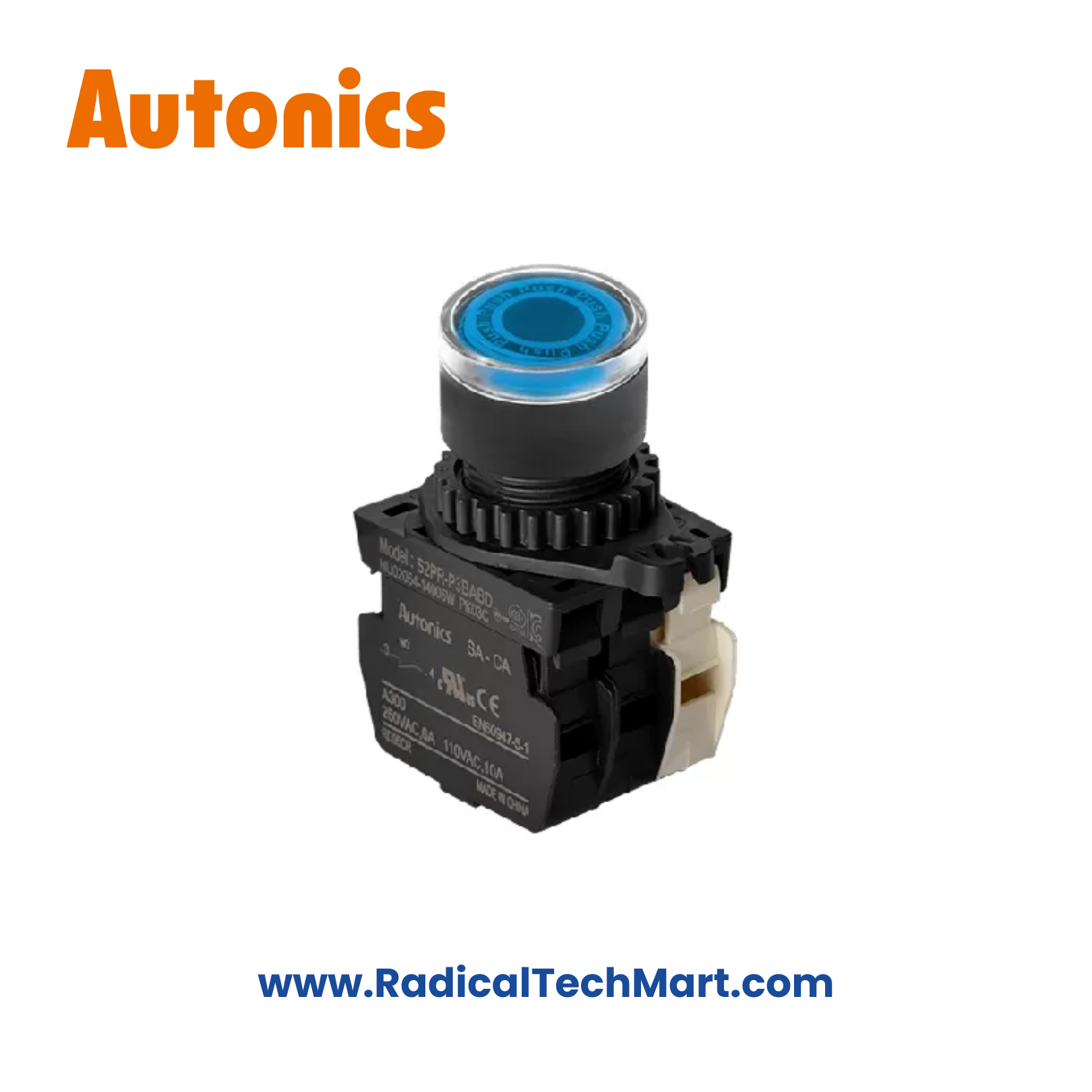

Autonics S2PR-P3BABL Illuminated Push Button Switch (Ø22 mm, Blue, Momentary, 1NO+1NC)
The Autonics S2PR-P3BABL is a Ø22 mm illuminated blue push button with momentary operation and 1NO+1NC contacts.
Suitable for control and indication functions in industrial automation and electrical control panels.
Customize
Share :
The Autonics S2PR-P3BABL is a Ø22 mm panel-mount illuminated push button switch designed for industrial control and automation applications. It features a blue actuator with integrated LED illumination and a 1NO+1NC contact configuration, enabling both control and visual status indication.
Built on the Autonics S2 modular platform, this push button is suitable for OEM machines, automation panels, and electrical control cabinets requiring reliable operator interface components.
Key Features
Ø22 mm standard panel mounting
Blue illuminated actuator for clear status indication
Momentary (spring-return) operation
1NO + 1NC contact configuration
Modular S2 series construction
High visibility and long service life
Suitable for continuous industrial operation
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Illuminated Push Button Switch |
| Model | S2PR-P3BABL |
| Mounting Diameter | Ø22 mm |
| Actuator Color | Blue |
| Illumination Color | Blue LED |
| Operation Type | Momentary |
| Contact Configuration | 1NO + 1NC |
| Rated Voltage (Contacts) | Up to 250 VAC |
| Rated Current (Contacts) | Up to 5 A |
| LED Supply Voltage | 12–24 V AC/DC or 110–220 VAC (by LED block) |
| Protection Rating | IP65 (front side) |
| Operating Temperature | -25 to +55 °C |
Applications
Industrial automation panels
Operator control stations
Status indication & control circuits
OEM machinery
Packaging and processing machines
Electrical control cabinets
What’s in the Box?
Autonics S2PR-P3BABL Push Button Head
Contact block (1NO + 1NC)
LED block (blue, as per model)
Mounting nut/collar
Product leaflet
FAQ
Q1. What does “P3BABL” mean in the model number?
P3 indicates 1NO+1NC contacts, BA indicates Blue Actuator, and BL denotes Blue LED illumination.
Q2. Is this push button momentary or maintained?
It is a momentary (spring-return) push button.
Q3. Can LED voltage be selected?
Yes. LED blocks are available in 12–24 V AC/DC or 110–220 VAC, selected as per requirement.
Q4. Does it fit standard control panels?
Yes. It fits standard Ø22 mm panel cutouts.
Q5. Is it suitable for industrial environments?
Yes. Designed for long mechanical and electrical life in industrial applications.
